Pardo Project, Ontario, Canada

The first important paleoplacer gold discovery in North America

Pardo Project NI 43-101 Technical Report

Location and Access

The Pardo Paleoplacer Gold Project is located in Ontario, Canada, 65 km north east of the world class mining district of Sudbury (Figure 1). The property has excellent year round access by road, which is less then 1.5 hours from Sudbury.



Figure 1. Interactive map showing location of the Pardo Project

Property Ownership

The Pardo property consists of 167 square km's of mineral claims covering the target paleoplacer geology. Inventus owns a 100% interest in the property (outlined black on Figure 2) after acquiring the remaining interest in the Pardo JV on November 30, 2016. Part of the property is subject to a 3% net smelter return royalty, of which 1.5% can be purchased by Inventus at any time for C$1.5 million.

Figure 2.

Figure 2.

Geology

The Pardo Project is a conglomerate-hosted gold deposit within rocks of the Huronian Supergroup, a 2.4 billion year old sedimentary basin. Ancient Precambrian Sedimentary basins such as the Huronian are known to contain large paleoplacer gold deposits. One such setting is the famous Witwatersrand basin in South Africa, which is considered the largest gold provenance in the world having produced approximately 40% of the worlds gold supply (Figure 3).

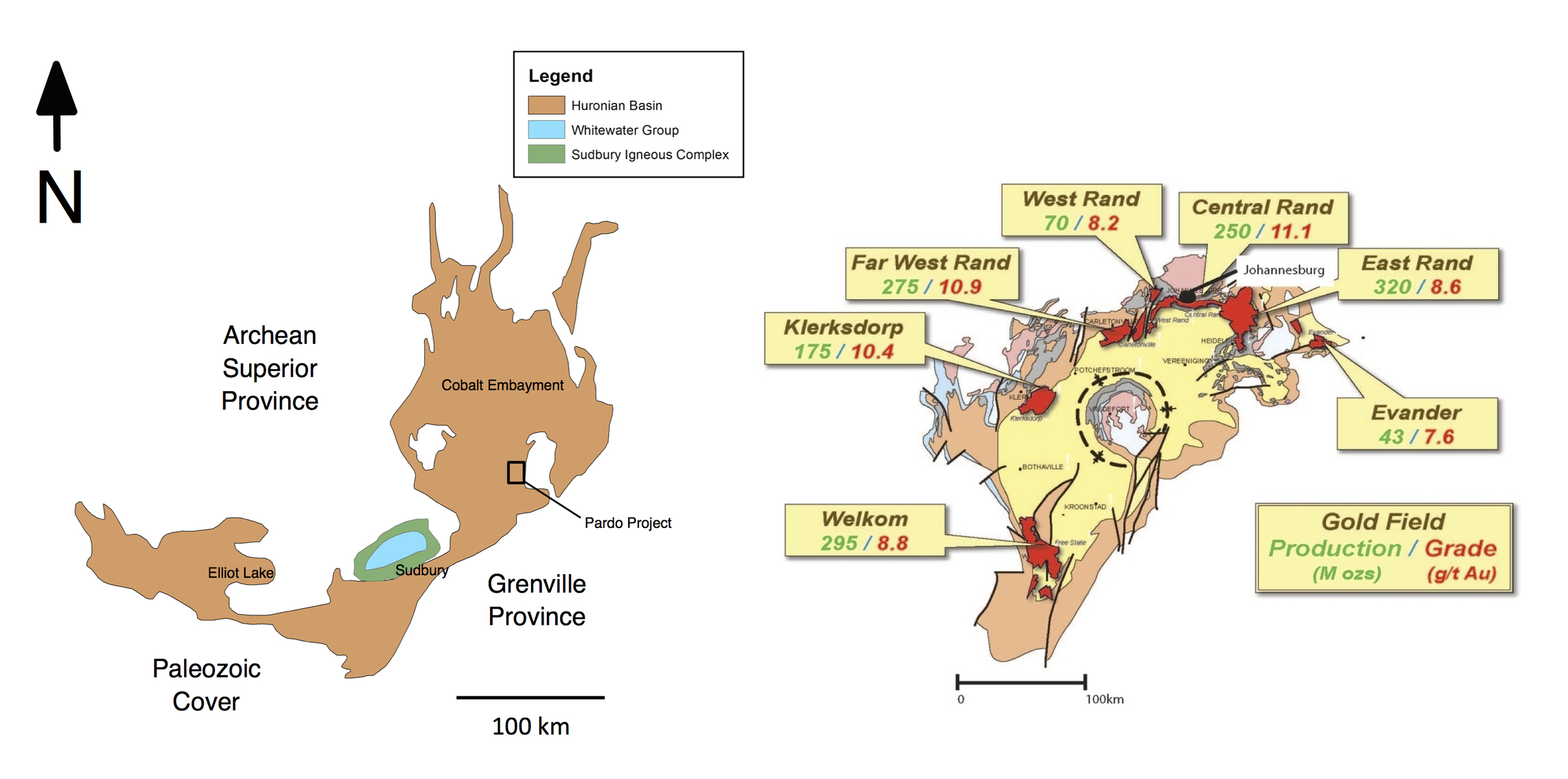

Figure 3. Size comparison between the Huronian (left) and Witwatersrand basin (right).

Inventus’ team has identified gold bearing conglomerate reefs within two separate formations. The conglomerate reefs are extensive, flat lying layers ranging from 1 to 4 metres thick. In some areas these reefs are stacked and separated by interbedded sandstone. The basal formation, the Matinenda, is composed of pyritic quartz pebble conglomerate and underlies the Mississagi Formation, a polymictic cobble to boulder conglomerate (Figure 4). The two formations contain anomalous gold values over the entire property that spans 13 km north to south and 3 to 5 km east to west.

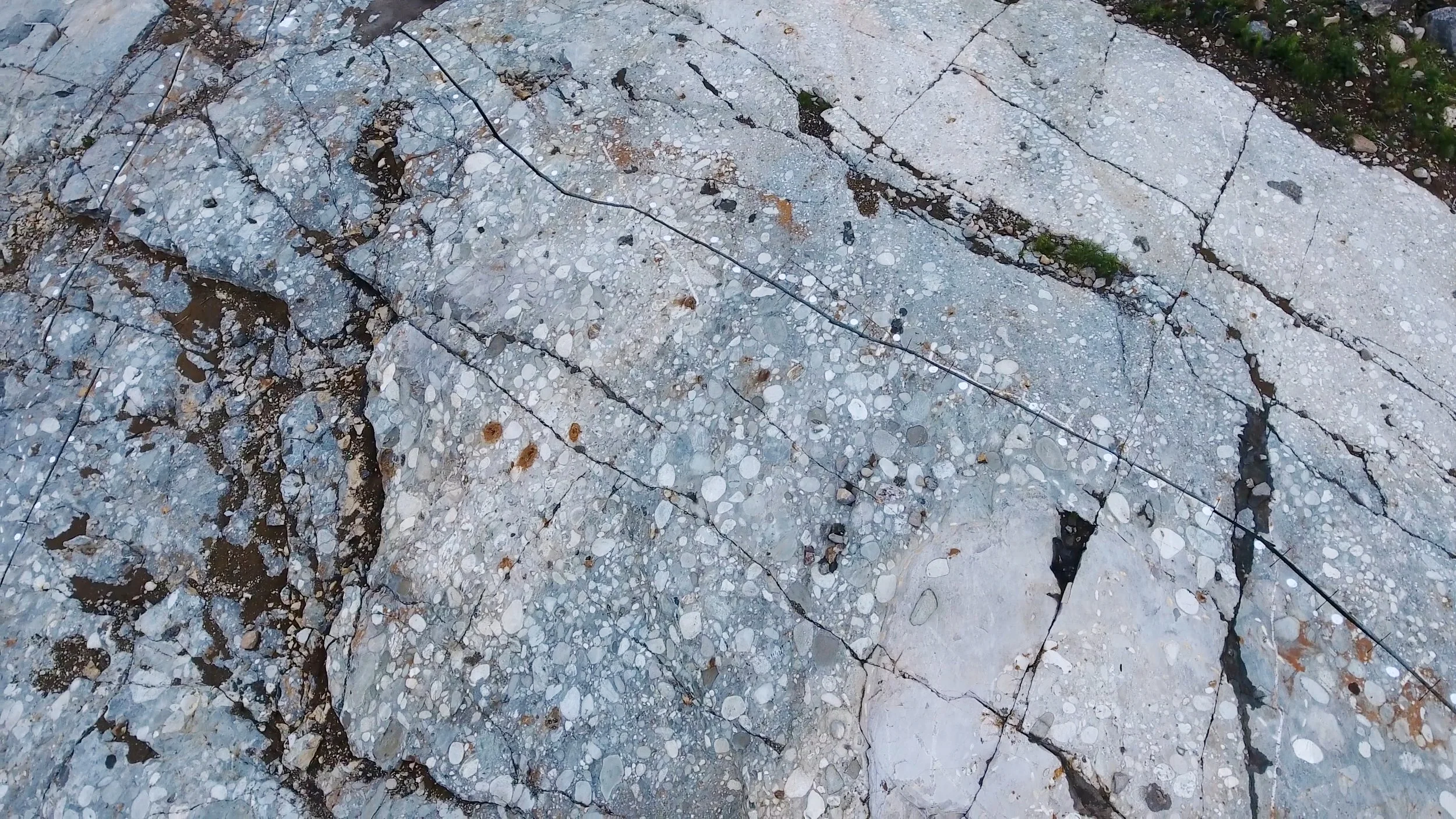

Figure 4. Example of Mississagi boulder conglomerate from Godzilla Zone.

Exploration

Numerous surface exposures of the gold bearing conglomerates have been identified over the Pardo Property since its discovery (Figure 5).

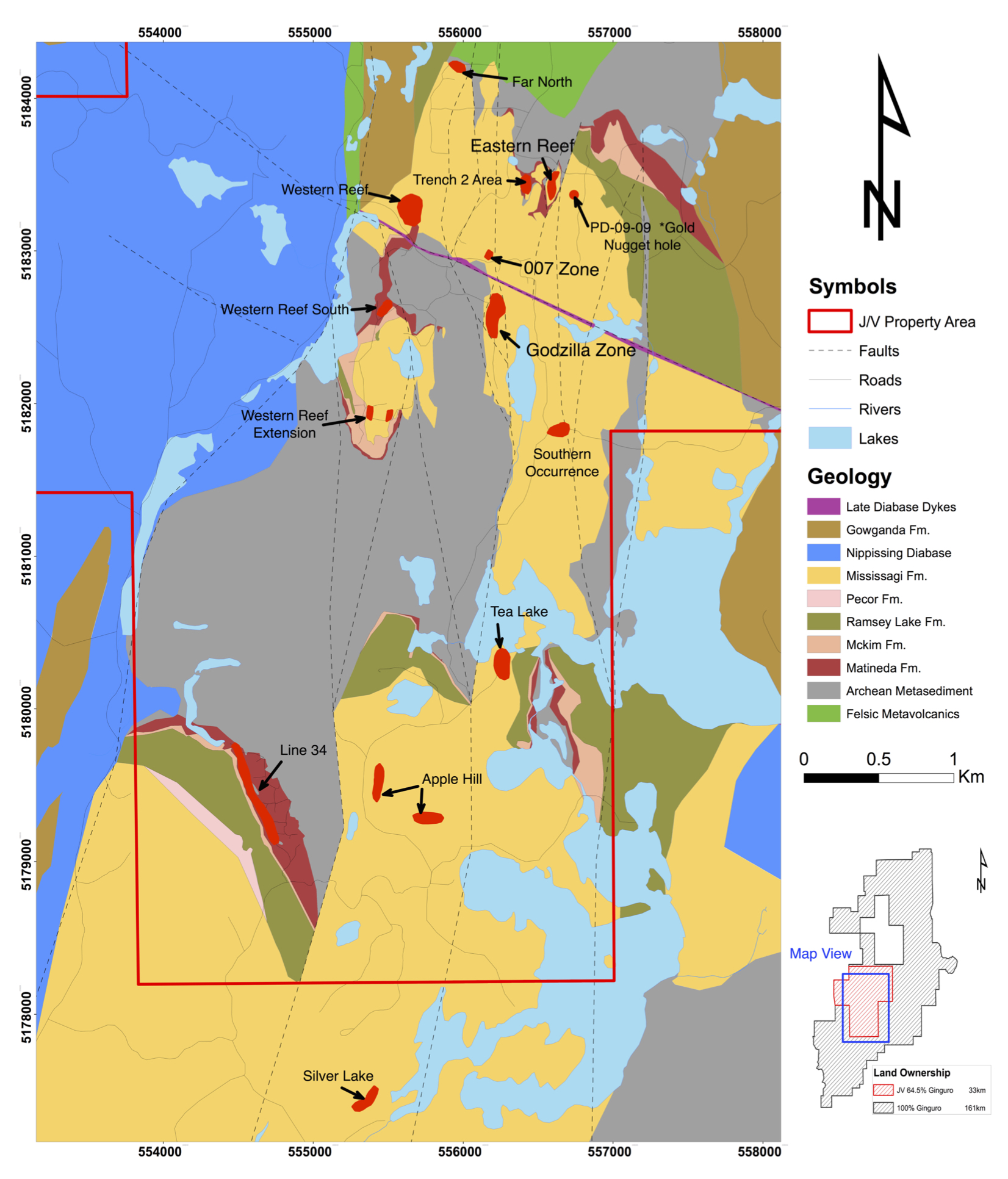

Figure 5. Property geology illustrating discovered surface showings of the gold bearing conglomerate reefs

The highest grade areas to date have been the 007, Eastern Reef and Godzilla Zones. Surface channel sampling highlights from these areas include:

  • 36.5 g/t gold over 31 metres at the 007 Zone
  • 4.2 g/t gold over 92.5 metres at Eastern Reef
  • 5.2 g/t gold over 140 metres at the Godzilla Zone

The maps below illustrate the channel sampling in greater detail

Academic Paper: Regional gold-enrichment of conglomerates in Paleoproterozoic supergroups formed during the 2.45 Ga rifting of Kenorland

Pardo Project Photo Gallery

Watch to Learn More About Paleoplacer Deposits in South Africa
